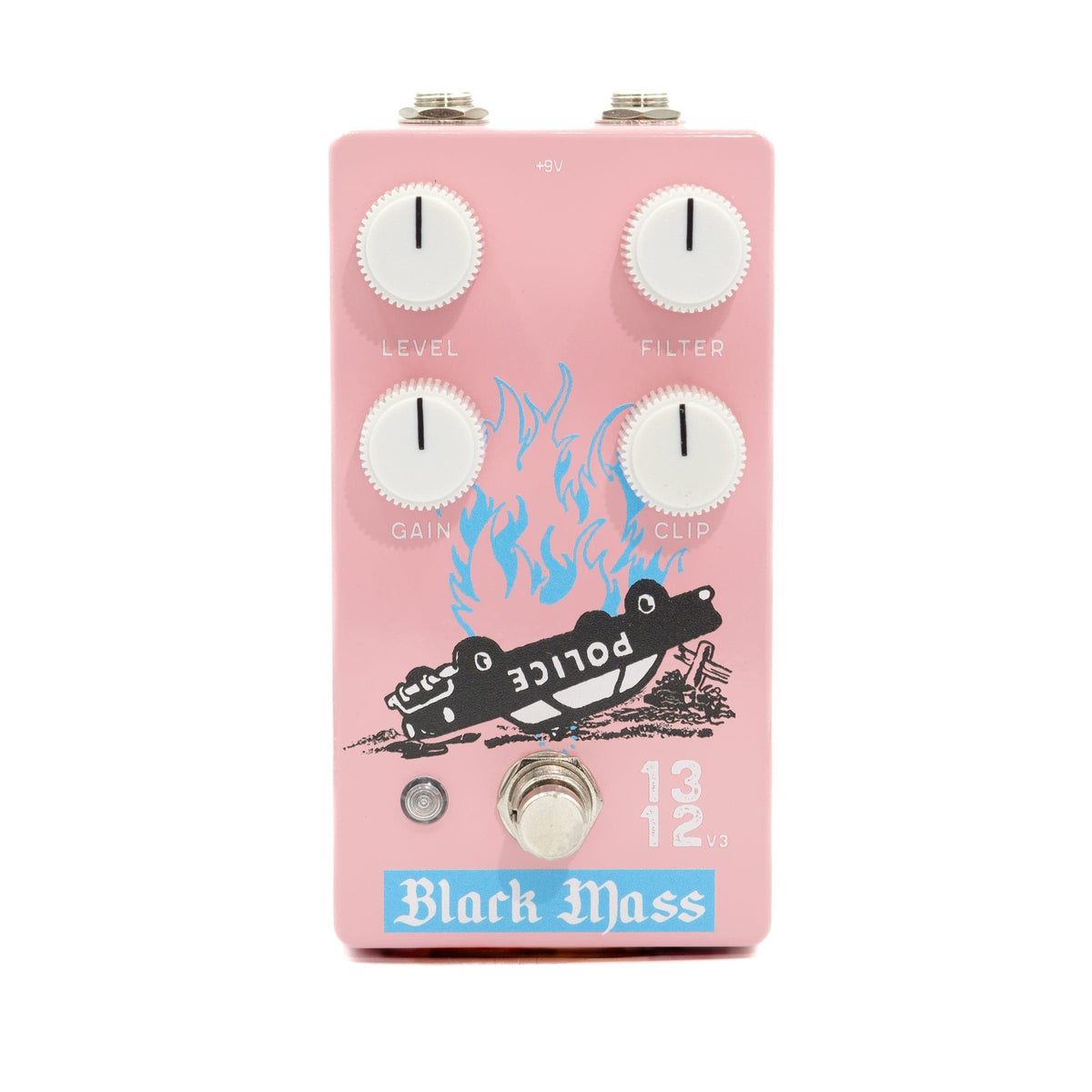

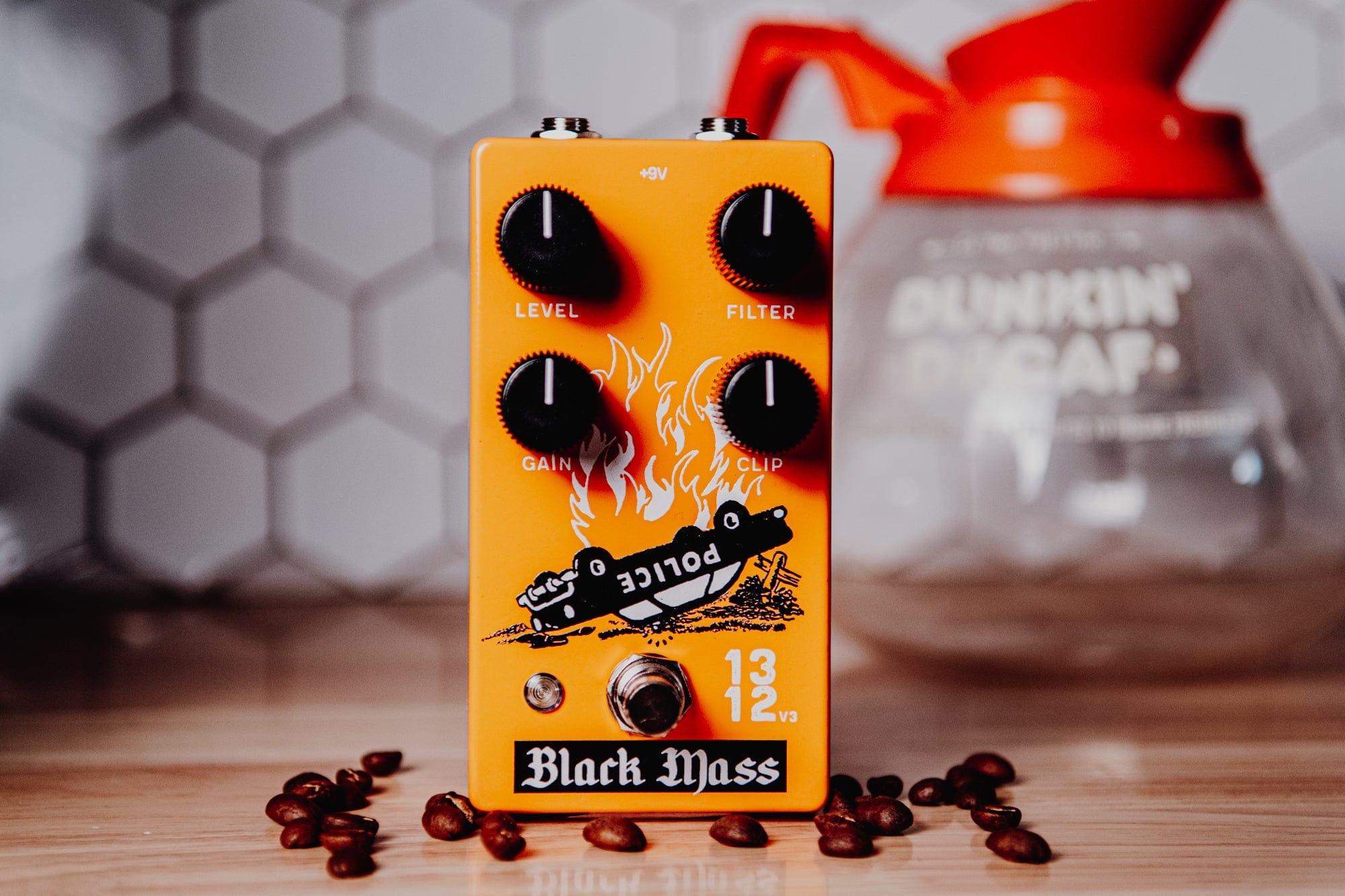

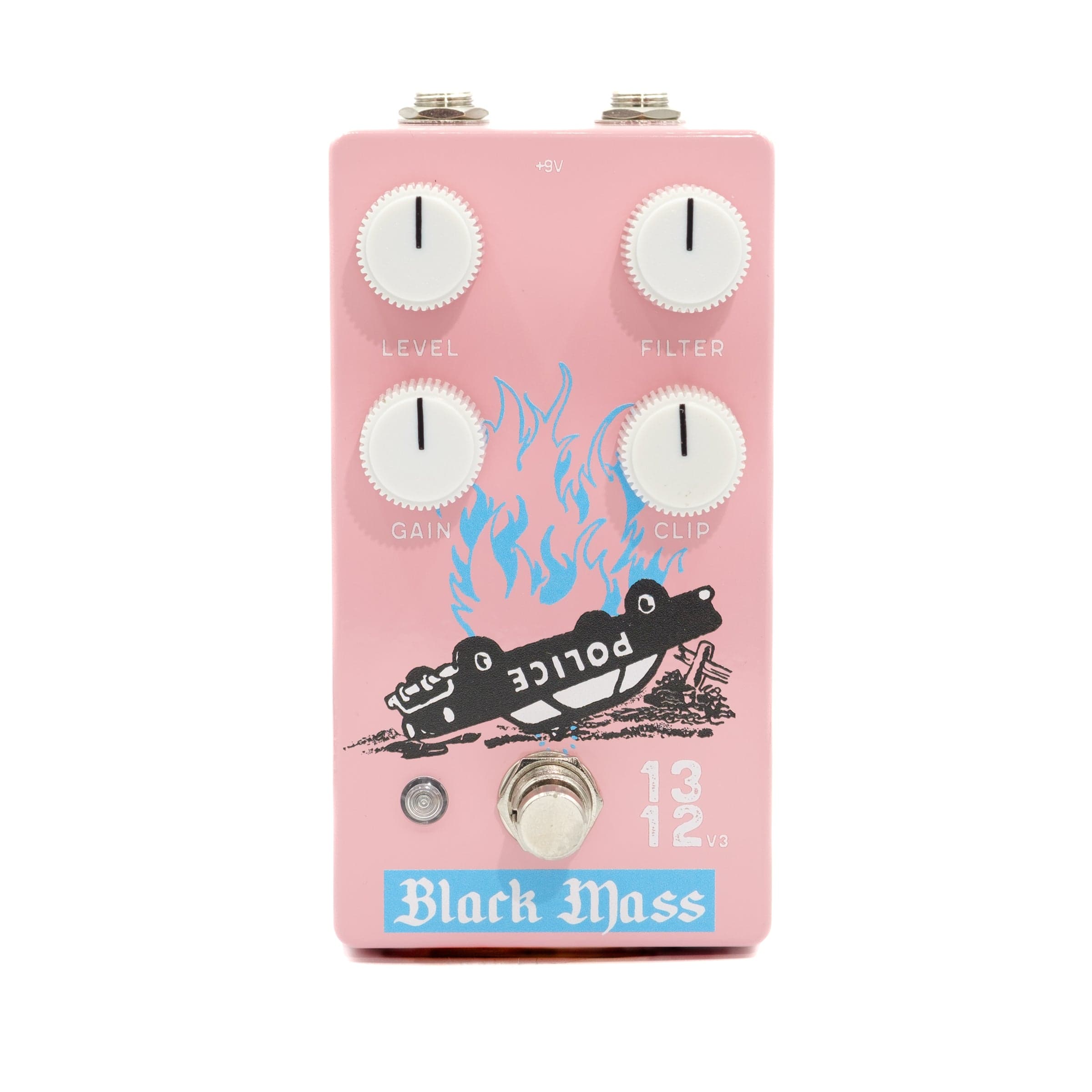

    1312 Distortion V3

    ā–¼Info

    The 1312 began its life as a physical embodiment of one of Black Mass Electronicā€™s fundamental beliefs: Black Lives Matter. It also provided an actionable avenue for us to demonstrate our support monetarily. This new iteration of the 1312 embodies another important sentiment: Trans Rights are Human Rights. 50% of the profits from these pedals will be split between several organizations whose causes we support - No More Dysphoria, Transgender Emergency Fund, Asian American Resource Workshop, Black & Pink - Boston, and Solidarity North Shore.

    2020 proved repeatedly that words on their own are not enough, and it is long past time to use our resources to support the oppressed and disenfranchised.

    Black Lives Matter.

    Trans Rights are Human Rights.

    If you disagree, our pedals are not for you.

    The 1312 Distortion is a famous three letter šŸ€ distortion circuit with 8 different clipping options on a rotary switch. The 1312 V3 features an internal charge pump that turns your 9V supply voltage into 18V for increased headroom. You can use an 18V supply but you must change the internal dipswitch settings FIRST. Please reference the manual.

    Accolades:

    ā—„Specs

    Controls:

    Level: Controls overall output level
    Filter: Turn clockwise for more treble
    Gain: Controls the amount of drive/distortion
    Clip: 8 Way rotary switch for selecting clipping diodes. Rotating clockwise, starting at ā€œnoon,ā€ clipping options include:
    ā€¢Vintage Germanium
    ā€¢Red LEDs
    ā€¢Silicon
    ā€¢Asymmetrical MOSFET
    ā€¢Silicon/Ge
    ā€¢MOSFET
    ā€¢Asymmetrical Silicon
    ā€¢Quad Silicon

    Power:
    ā€¢Standard 2.1mm center negative power only.
    ā€¢9V DC Only (can run at 18V if you change the dipswitch settings inside)
    ā€¢Do not run at higher voltages, or use the wrong dipswitch settings.
    ā€¢Current Draw: <100 mA
    ā€¢Use an isolated power supply. Daisy chains will often work fine but can introduce unwanted noise.

    Ā

    ā—„Manual

    1312 V3 Manual

    1312 V1&2 Manual

    Demos


    Ā

    1312 V3 Walkthrough Demo by @ambienttrashĀ

    Black Mass Electronics | 1312 by Tunnel of Reverb

    Will it Shoegaze? // 1312 by collector//emitter

    Black Mass Electronics 1312 Demo by Megan L

    linger by the cranberries played through the Black Mass Electronics 1312 by @samesong.diffpedal

    Black Mass Electronics 1312 Distortion | Spotlights Ep. 19 by dots.sounds

    Please follow onĀ InstagramĀ orĀ TwitterĀ for updates, or sign up to our email list. THIS WOULDN'T BE POSSIBLE WITHOUT EVERYONE'S SUPPORT.
